2 Unfold each sheet and smooth the paper. Acceleration -2 metersminuteminute or -2 metersminute2 3.
35 Motion Graphs Worksheet Answers Free Worksheet Spreadsheet

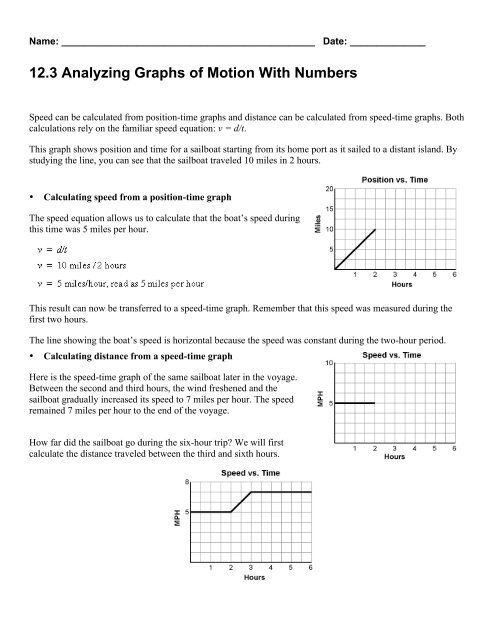

42 Analyzing Gr phs of otion With Numbers CONTENT 42 Speed can be calculated from position-time graphs and distance can be calculated from speed-time graphs.
Analyzing graphs of motion without numbers worksheet answers. Revision of Graphs of Motion In this lesson we revise all the graphs of motion for both constant velocity and constant acceleration. The car is stopped. Both calculations rely on the familiar speed equation.
The graph starts at the origin. Just before talking about Graphical Analysis Of Motion Worksheet Answers please be aware that Education and learning can be each of our step to a much better the day after tomorrow along with learning does not only avoid the moment the school bell ringsIn which remaining reported we offer you a a number of simple nevertheless enlightening articles or blog posts along with themes. Velocity-time graphs sloping towards the x-axis represent losing speed.
Constant Acceleration and Graphs of Motion In this lesson we investigate constant acceleration. 5 Place something heavy like a hardbound book on the newspaper to remove excess spa. Graph Read Slope Area Instantaneous velocity Acceleraton Displacement SUMMARY.
Some of the worksheets for this concept are Motion graphs Answers to motion graphs 10 Motion graph review Name perio kinematics motion graphs Name key period help make motion Council rock school district overview Motion kinematics Answers to motion graphs 10. Acceleration 5 mileshourhour or 5 mileshour2 2. To get started on your journey in using this worksheet you can download it for free from the website associated with the motion graph analysis worksheet.
Acceleration 2 feetsecondsecond or. Displaying top 8 worksheets found for - Motion Graphs Answers. 3 Neatly stack the sheets of paper.
This graph shows position and time for a sailboat starting from its home port as it sailed to a distant island. The final segment of the graph has a width of 3 seconds. Straight-line graphs of time.
Analyzing motion graphs worksheet answers. Forces and motion Other contents. Graphical Analysis Of Motion Worksheet Answers is actually very easy to use.
The speed-time graphs below represent the motion of a car. The honey bee among the flowers. 2 4 analyzing graphs of motion with numbers 1.
All you need to do is trace your target shape with the mouse or pencil and then just draw the corresponding lines and corresponding figures. Straight horizontal line Motion with constant velocity no acceleration. Average ve ocity velocity Velocitv vs.
21 Mass vs Weight 22 Acceleration Problems 22 Newtons Second Law 23 Acceleration Due to Gravity 24 Analyzing Graphs of Motion Without Numbers 24 Analyzing Graphs of Motion With Numbers 24. Skill and Practice Worksheets Physics A First Course Skill and Practice Worksheets Credits CPO Science Curriculum Development. Speed and Acceleration Add to my workbooks 54 Download file pdf Embed in my website or blog Add to Google Classroom.
The line moves upward. When looking at the results of the graphical analysis of motion worksheet answers can be quite confusing if the data is presented in the form of a straight line. 24 Acceleration and Speed-Time Graphs 1.
1 Remove the newspaper from the recycling bin. Stayed to blow it down and eat dinner. Moderate By analyzing the x-t graph shown here answer the questions below.
Acceleration 0 feetminuteminute or 0 feetminute2 or no acceleration 4. In which section s is the cart accelerating. Velocity-time graphs sloping away from the x-axis represent gaining speed.
Area under the graph Average velocity for the interval. We show how the gradient of the velocity versus time graph can be used to calculate the acceleration at a point. Time Graphs v-t 2.
The width of the middle segment of the graph is 6 seconds. The wolf started from his house. In advance of referring to Motion Graphs Worksheet Answer Key be sure to are aware that Education is definitely our own critical for an even better tomorrow in addition to understanding wont just end when the classes bell ringsOf which remaining mentioned we all give you a number of uncomplicated still informative content along with web templates designed well suited for virtually any.
Graph E matches description _____ because _____. The first segment of the graph has a width of 5 seconds and a height of 7 m. Sometimes people make the mistake of drawing a line across the interval between points A and B but this does not show what happened before point A was passed by or how much faster or slower the.
The graph starts at the origin. Match the descriptions with the graphs. Analyzing Graphs of Motion Without Numbers 32 Position-time graphs The graph at right represents the story of The Three Little Pigs The parts of the story are listed below.
Traveled to the straw house. Introducing graphical analysis of motion worksheet answers our programs take your choices and create the questions you would like. Analyzing Graphs of Motion Without Numbers Position-time graphs The graph at right represents the story of The Three Little Pigs The parts of the story are listed below.
After 7 seconds the skydiver has fallen from rest a distance of 240 meters. There are some simple tools that you can use and here is a short list. Instantaneous position YES Slope.
Velocities are positive when the graph is in I quadrant I. Create an accurate v-t graph that expresses the same motion. The car is accelerating.
Motion Graph Analysis Worksheet Along with Elegant Cv Template Sample Baskanai Resume In Spanish Emsturs. Match the description provided about the behavior of a cart along a linear track to its best graphical representation. The line moves upward.
Velocities are negative when the graph is in quadrant IV. The car is slowing down. The wolf started from his house.
The car is traveling at a constant speed. Traveled to the straw house. 4 Place the newspaper on a flat surface.
